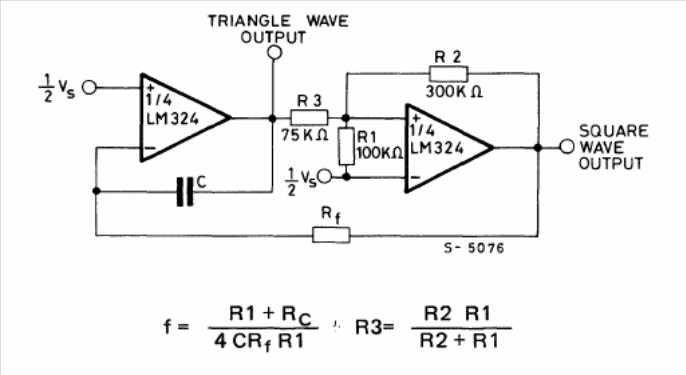

This circuit, which we found in SGS's 1982 linear semiconductor manual, does not need a symmetrical power source, and generates both triangular and rectangular signals. This configuration can be found in other LM324 manufacturer's manuals.
