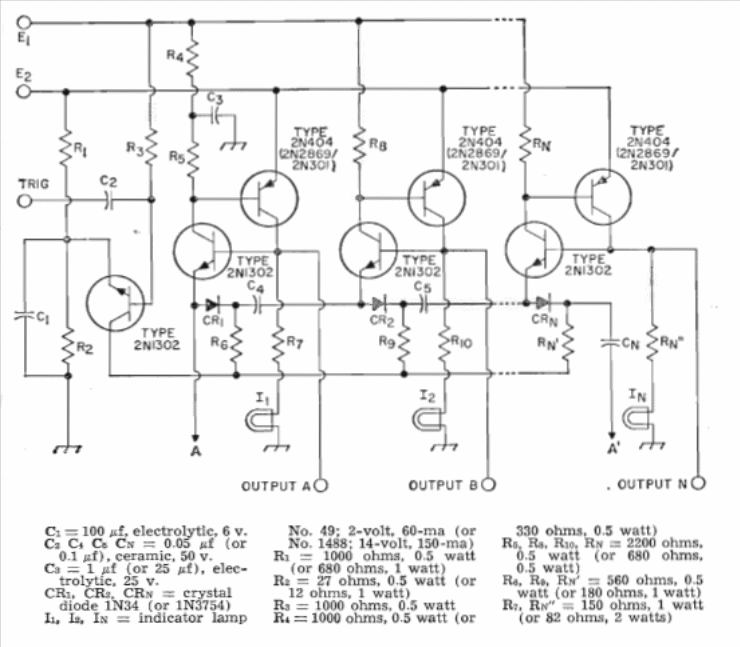

We found this configuration in the 1964 RCA transistors manual. As indicator loads in each stage, lamps are used. The transistors can be BC548 and BC558 and the number of stages can be increased.
| Clique na imagem para ampliar |
Transistor Srhift Register (CB14818E)
- Details
- Written by: Newton C. Braga
