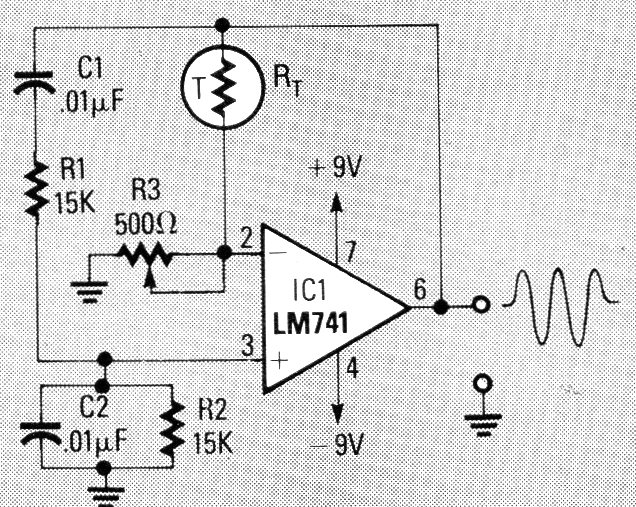

This circuit is stabilized by a thermistor or NTC with a resistance between 2 and 5k. The signal is adjusted in the pot. For the values of the indicated components the frequency is 1 kHz, and the power is obtained from a symmetrical source.
Sinusoidal Oscillator 741 (CB14904E)
