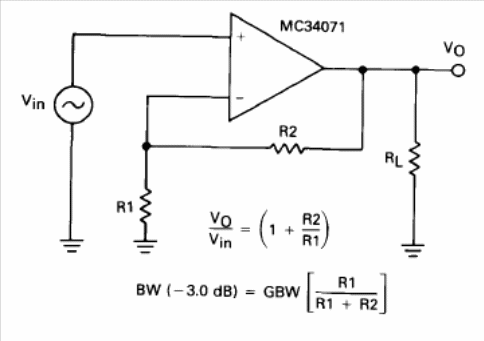

This configuration is also valid for other operators and the formula for calculating the gain is given next to the diagram. The circuit is from Motorola's 1990 Linear Databook. The power supply must be symmetrical.
Basic Non-Inverter Amplifier MC34071 (CB14491E)
- Details
- Written by: Newton C. Braga
