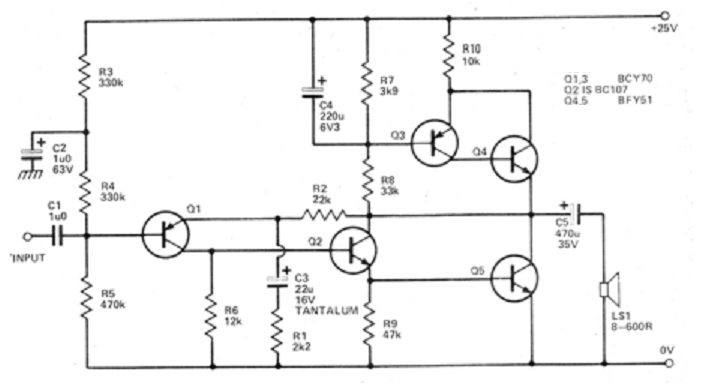

This circuit offers excellent sound quality for headphones of 150 ohms or more. The circuit was found in a 1980 documentation, but can be assembled with equivalent transistors, such as the BD135 for the output and BC547 and BC557 for the excitation.
| Clique na imagem para ampliar |
