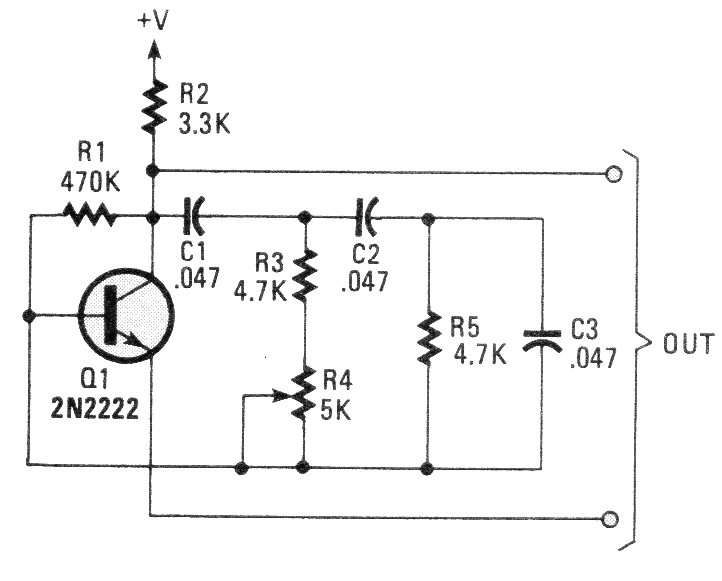

This traditional phase displacement oscillator circuit was found in a documentation from the 1980s. The supply can be made with voltages from 9 to 15 V and the signal generated is sinusoidal. The frequency depends on C1, C2 and C3.
