High Output Voltage Regulator 78xx (CB15164E)
- Details
- Written by: Newton C. Braga

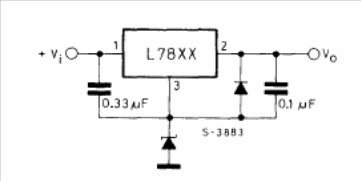

In this circuit, the output voltage is Vxx plus the zener voltage. The circuit is from the SGS linear integrated circuits manual and the maximum output current is 1 A.
