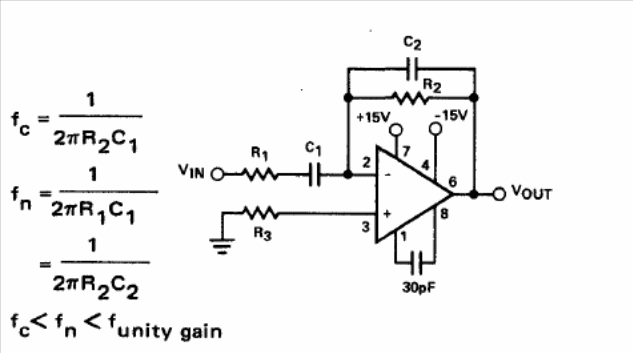

We found this circuit in the Signetics integrated circuits manual from 1972. Operational equivalents can be used and the formulas for calculating the components are attached to the diagram.
Differentiator LM101 (CB14726E)
- Details
- Written by: Newton C. Braga
