70 MHz FI amplifier (CB14817E)

Details
Written by: Newton C. Braga

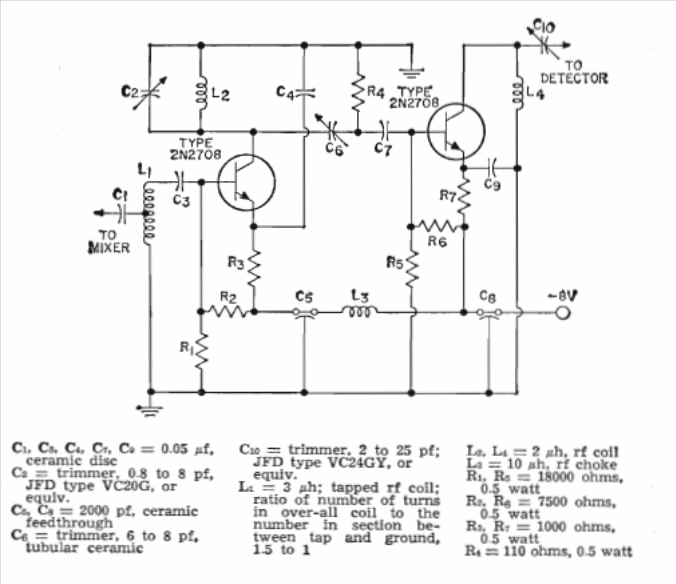

This circuit is used in VHF and UHF superheterodyne receivers. The circuit is from the 1964 RCA transistors manual. Equivalent transistors such as the BF495 can be used.




| Clique na imagem para ampliar |
