Analog Digital Values Indicator (CB14702E)

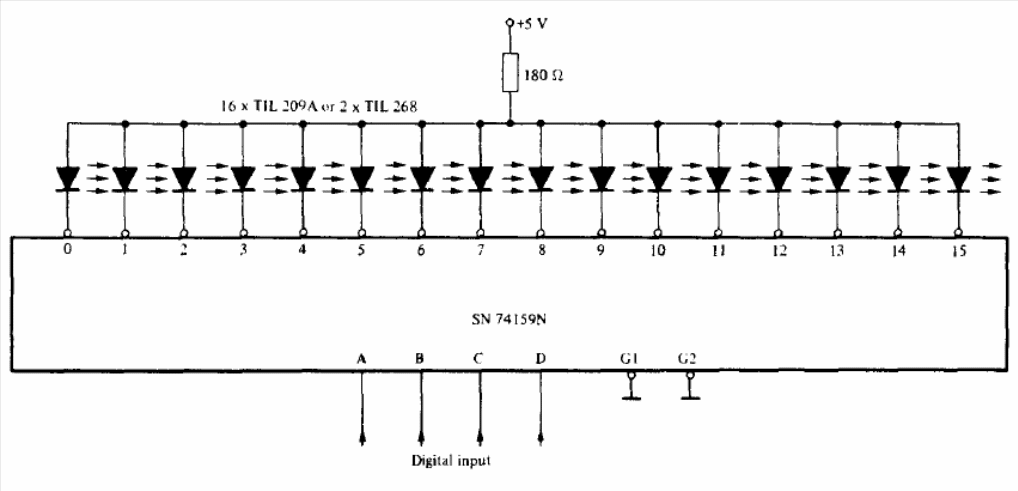

We found this TTL circuit in a Texas Instruments optoelectronics manual. The power is 5 V and the LEDs are common.

| Clique na imagem para ampliar |
