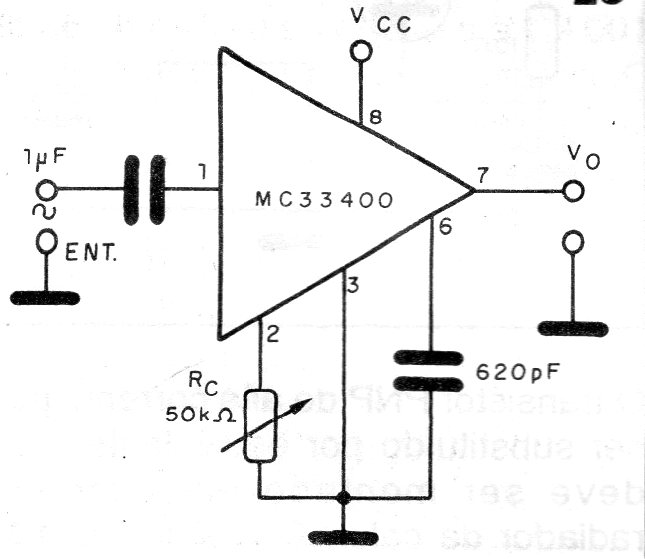

Suggested by Motorola in a 1992 documentation, this circuit works as a remote volume control, where the control signal is DC, provided by the potentiometer. The circuit must be powered by voltages from 8 to 18 V and the integrated circuit used is uncommon today.
