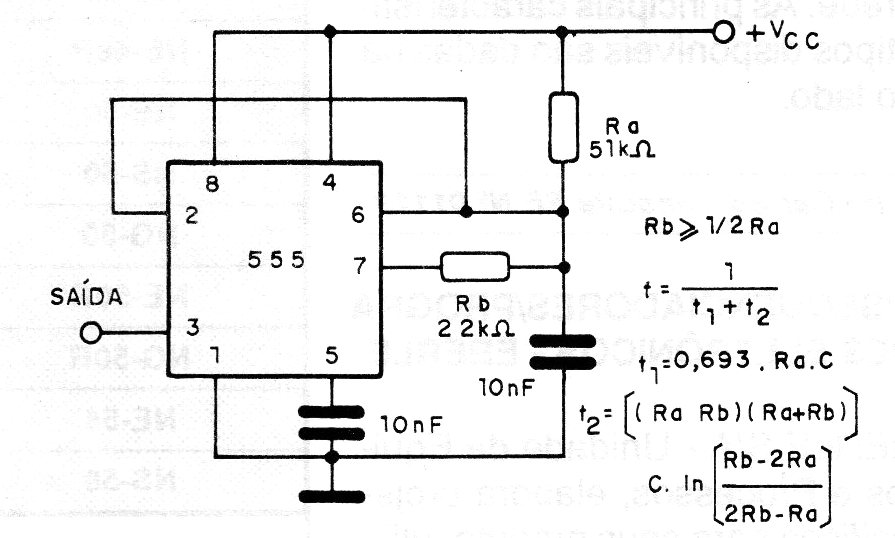

In the figure we have a simple and efficient way to obtain rectangular signals from an astounding 555 with 50% active cycle, that is, the time of the high level is equal to the time of the low level. The formulas next to the diagram allow to calculate the components for a given operating frequency.
