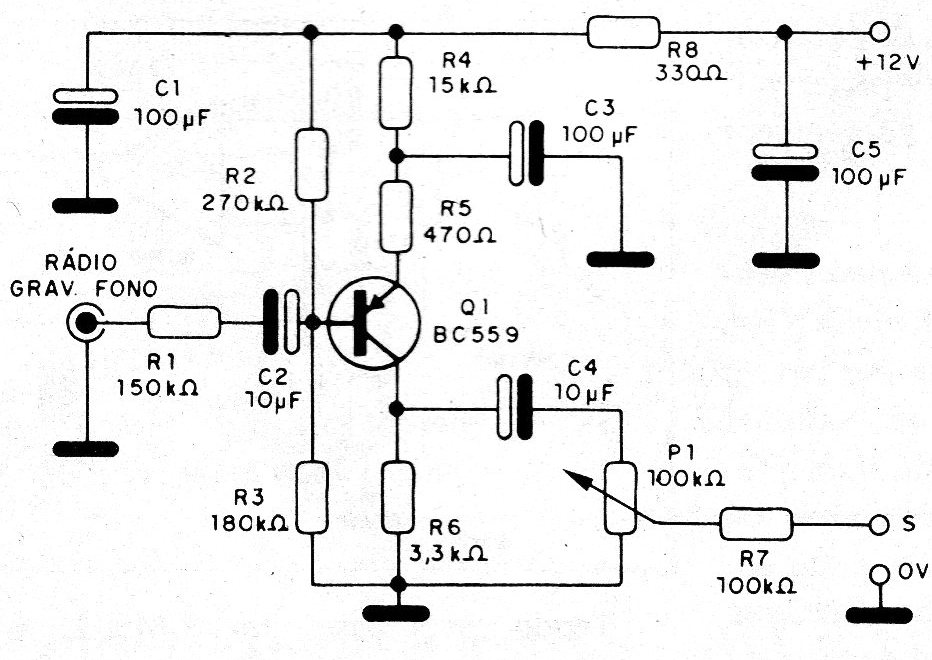

This circuit uses only one transistor and has an excellent gain for the type of signal source indicated. The circuit can also be used with piezoelectric microphones that have the same characteristics. The consumption is very low, on the order of 1 to 2 mA.
| Clique na imagem para ampliar |
