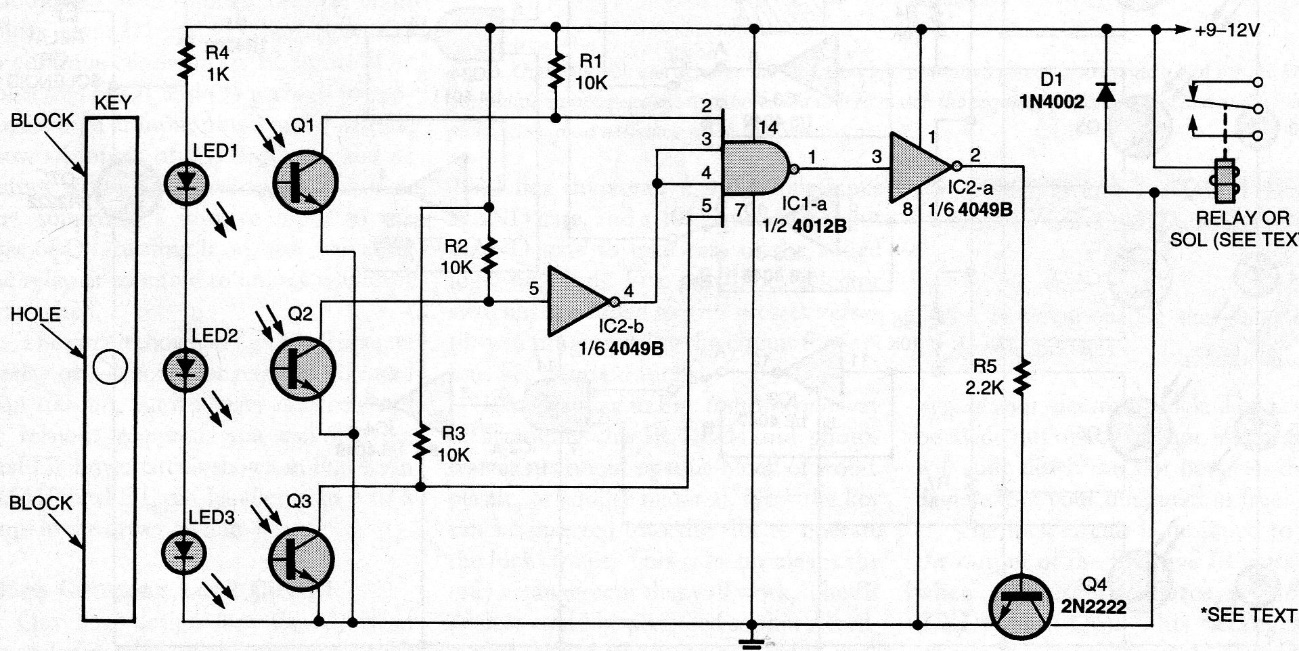

The code switch circuit with optical sensors shown in the figure was found in a 2000 Poptronics. The magazine no longer exists, but the components used are common. The switch activates a relay only when the combination of illuminated sensors is correct. This drive can be done by a perforated card.
