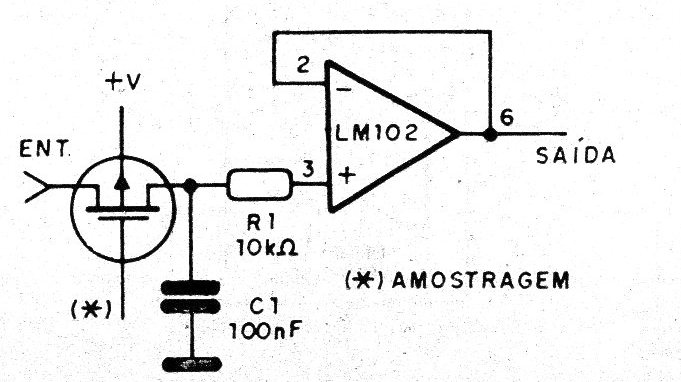

The figure circuit retains in the capacitor load, the value of the input voltage, keeping it available at the output of the operational LM102 for a time that depends on the quality of the capacitor. The capacitor must be of good quality to prevent leakage from leakage. National indicates for this application a capacitor with polycarbonate dielectric. The power supply must be symmetrical.
