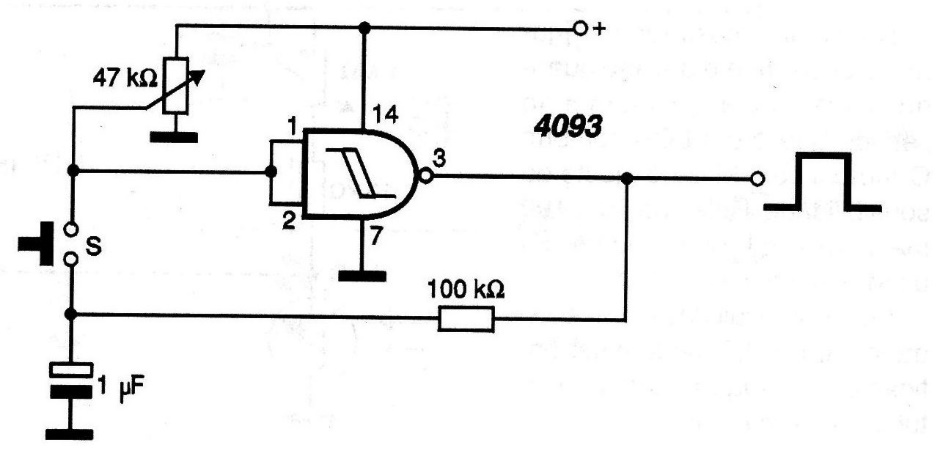

The circuit shown in the figure allows a pressure switch to be used to turn a load on and off in a bistable action, which is adjusted in the 47 k ohms trimpot for greater sensitivity. The 1 uF capacitor must be made of polyester and the other 4093 ports can be used in independent applications. The supply voltage can be between 5 and 15 V.
