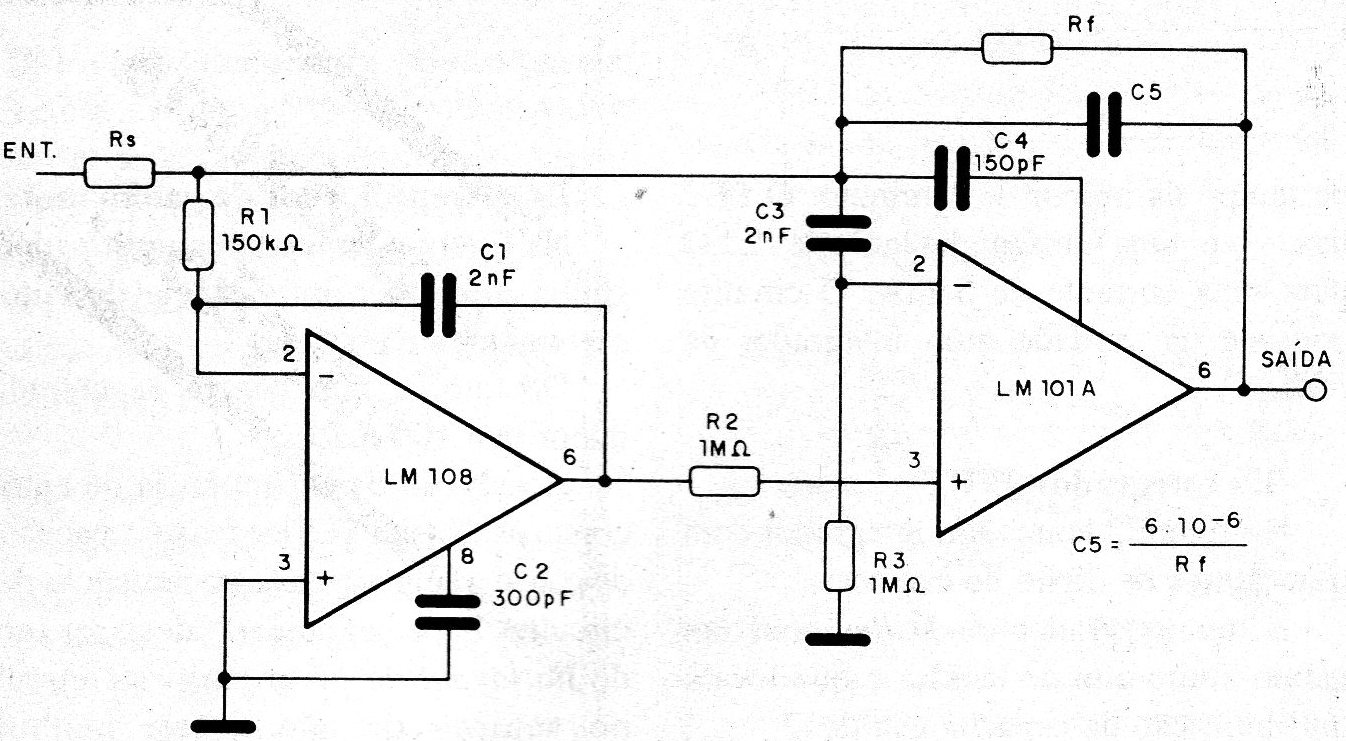

Fast Adder (CB15813E)

Details
Written by: Newton C. Braga



This circuit was suggested by National Semiconductor in one of its manuals. The LM108 integrated circuit, uncommon nowadays, can be replaced by an equivalent. The power supply must be symmetrical.
