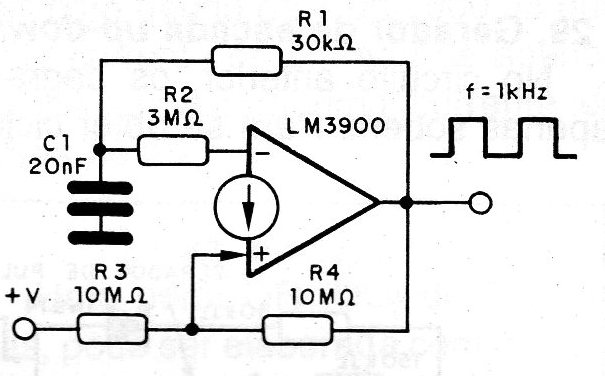

To obtain rectangular 1 kHz signals, we can have a simpler configuration, with a single amplifier, as shown in the figure. In this circuit C1, it is charged via R1 and discharged through this same resistor, according to the operational switch according to the reference voltage, established by resistors R2, R3 and R4.
