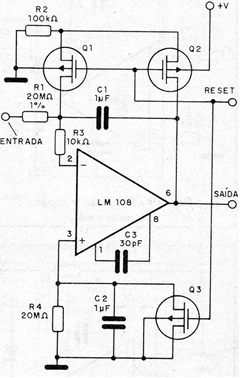

We found this circuit in a manual from National Semiconductor (now Texas Instruments), using the operational amplifier LM108 that is no longer common today, as well as FETs. Equivalents can be used, and the power supply must be symmetrical.
Stable Integrator (CB15812E)
- Details
- Written by: Newton C. Braga
