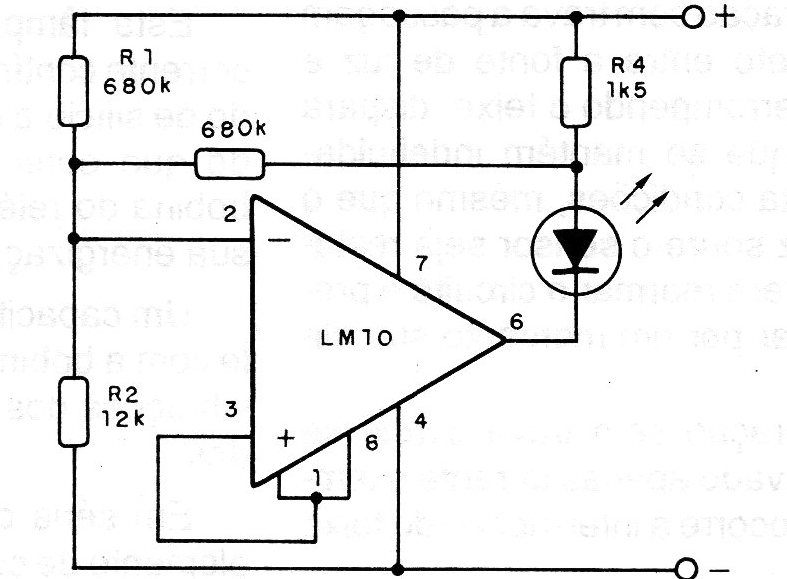

This indicator, shown in the figure and suggested by National Semiconductor, causes an LED to light up when the supply voltage drops below 7V and is therefore suggested to monitor 9V batteries. The LED will go out when the voltage drops further to a value around 6V. The current in the standby condition is very low.
