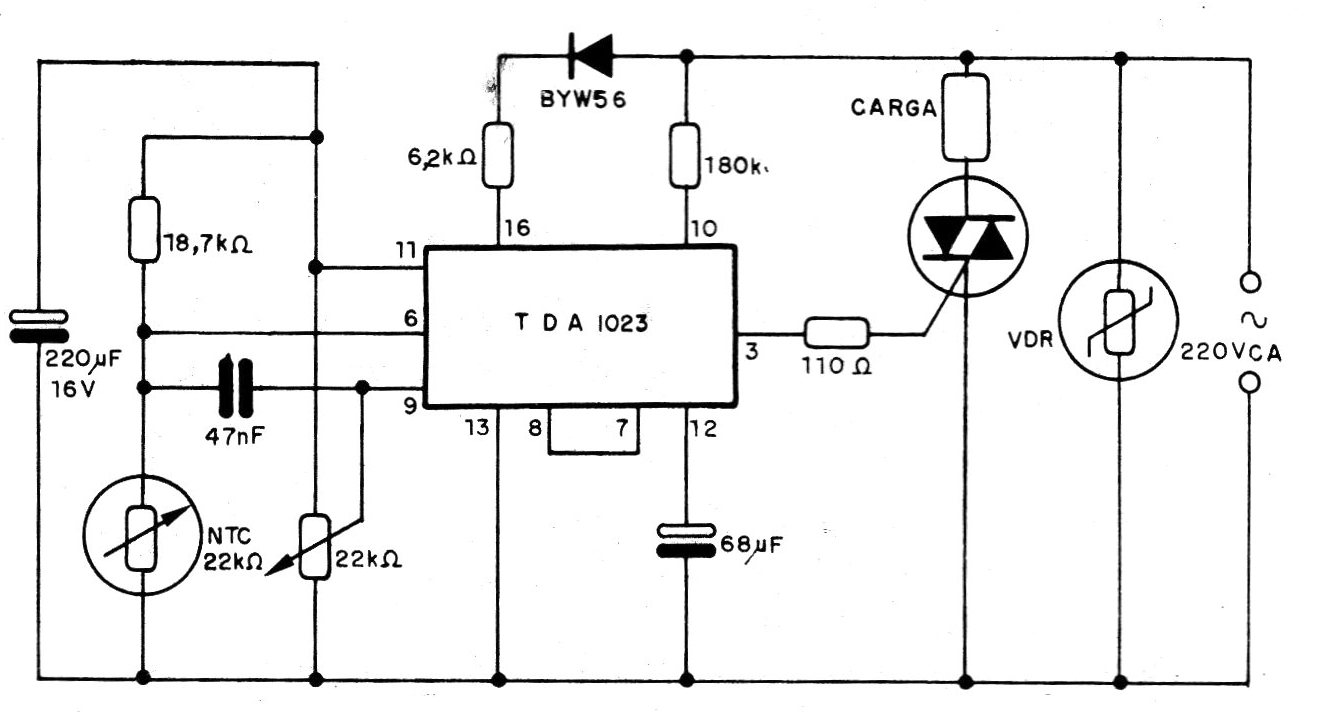

Although the TDA1023 integrated circuit is no longer very common in our market, it can be used in this interesting high-power thermostat with triac. The trigger adjustment is made in the trimpot and the controlled power depends only on the triac. The VDR serves to protect the circuit against transients.
