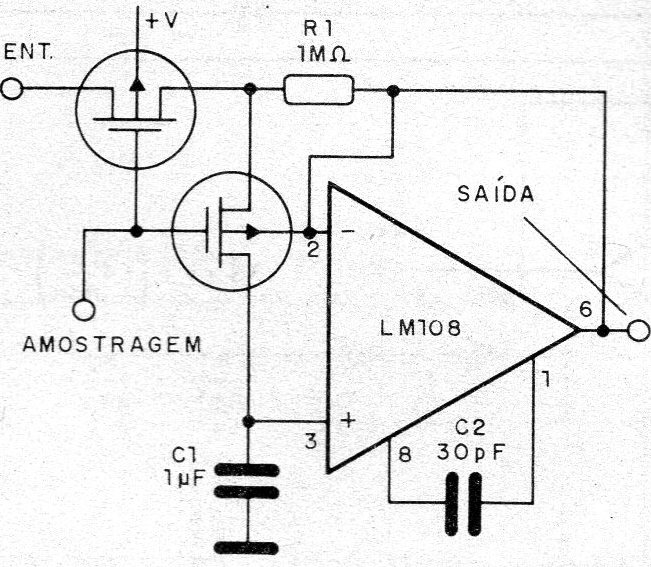

This sample and hold circuit uses an LM108 operating system that is no longer common today. FETs can be of any type of 4 MOS terminals and equivalent operational ones can be employed. The power supply must be symmetrical. The circuit is suggested by National Semiconductor.
