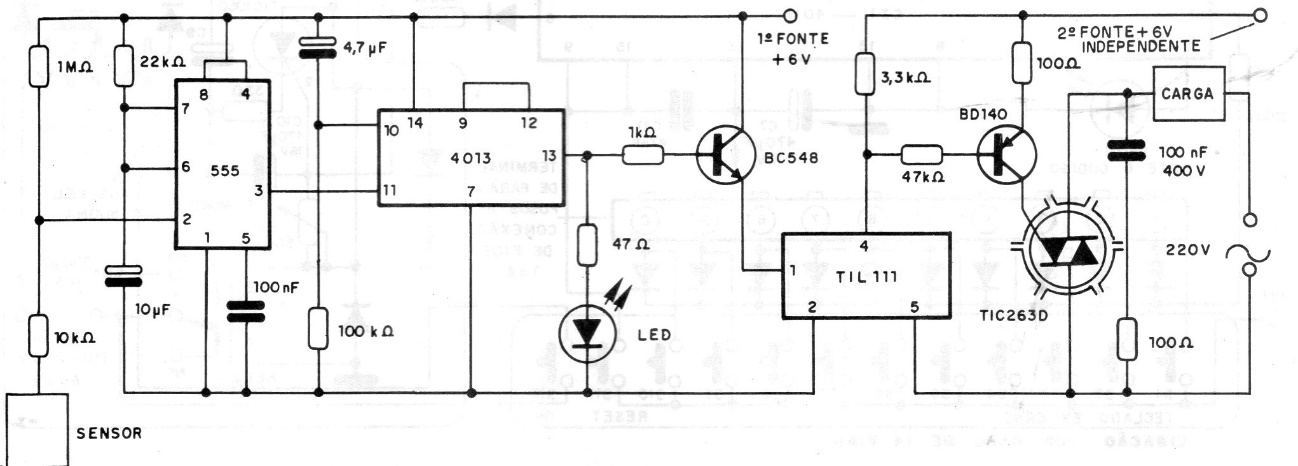

This circuit consists of a touch switch with optical isolation, using CMOS integrated circuits. The source must be isolated and the triac must be equipped with an appropriate heat sink. The circuit has a bistable operation, that is, one touch turns on and the next touch turns off. The second independent source must be isolated from the first.
