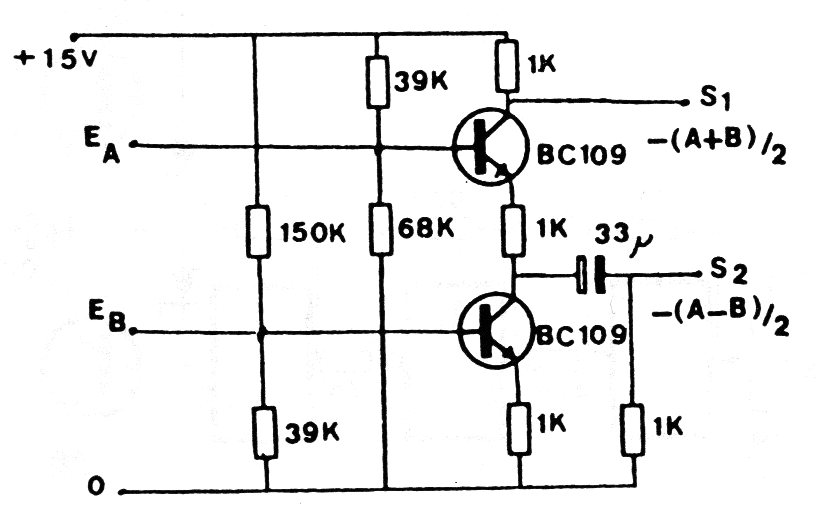

The presented circuit uses common transistors that can be the BC549. The maximum amplitude of the input signals is 1.4 V the voltage of one of the outputs will be the sum of the input voltages and the other output the difference between the input voltages.
