3 V LED Pulsator (CB16932E)

Details
Written by: Newton C. Braga

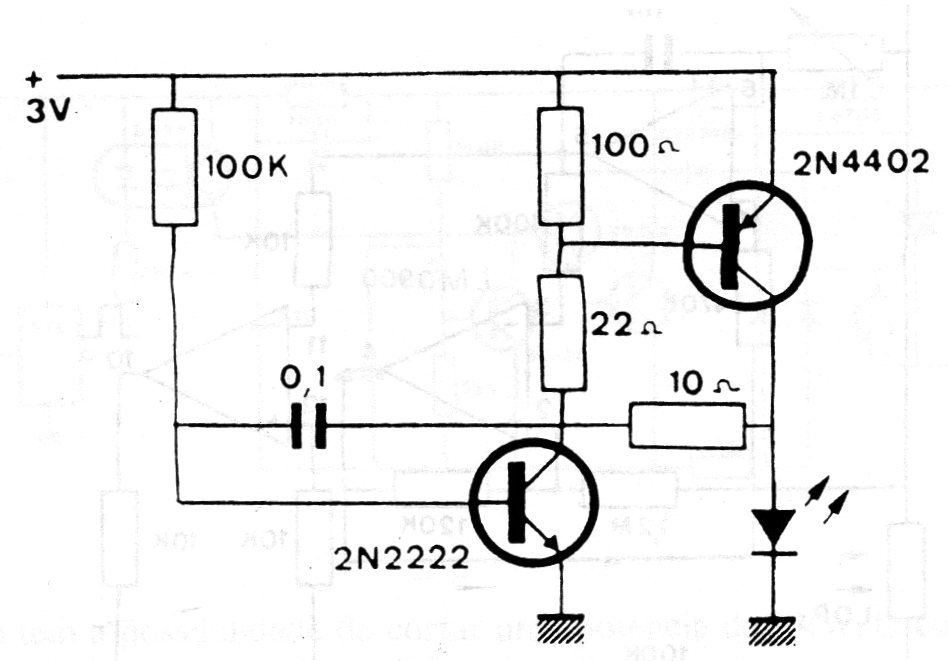

This circuit causes an LED to flash at a frequency determined by the capacitor. The circuit is powered by only 3 V and can be used for signaling.
