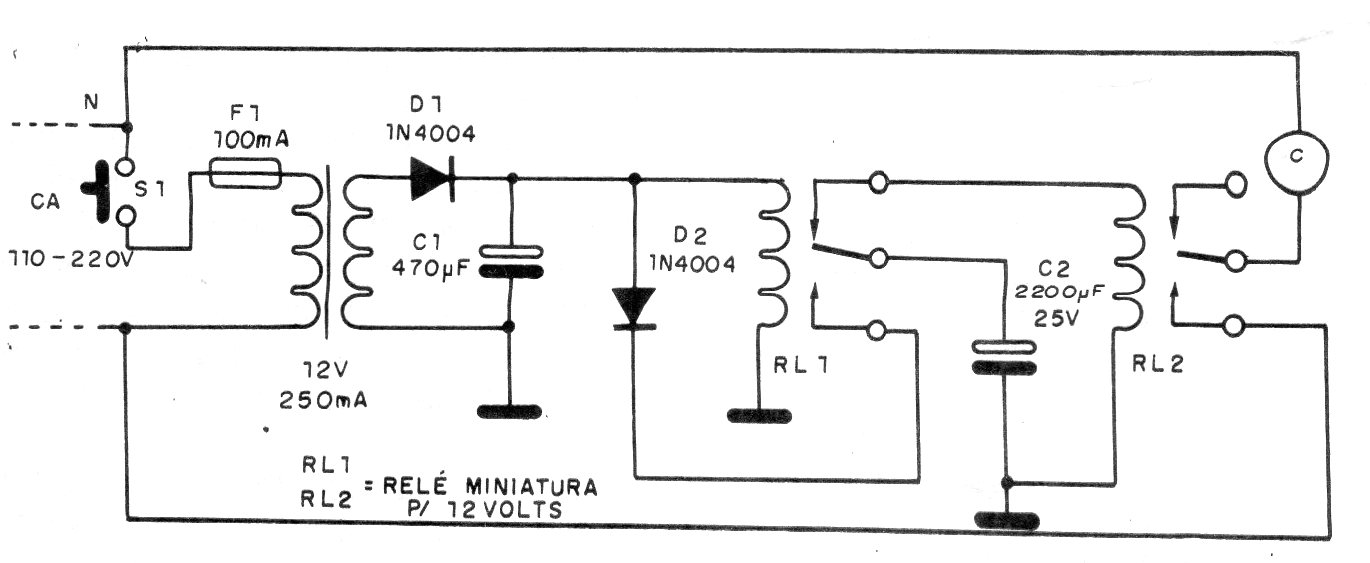

This circuit is intended to limit the ringing time of a bell. Even if the button is kept pressed for a long time, the bell only rings for a limited time, determined by capacitor C2. The circuit uses two 12 V relays according to the transformer.
