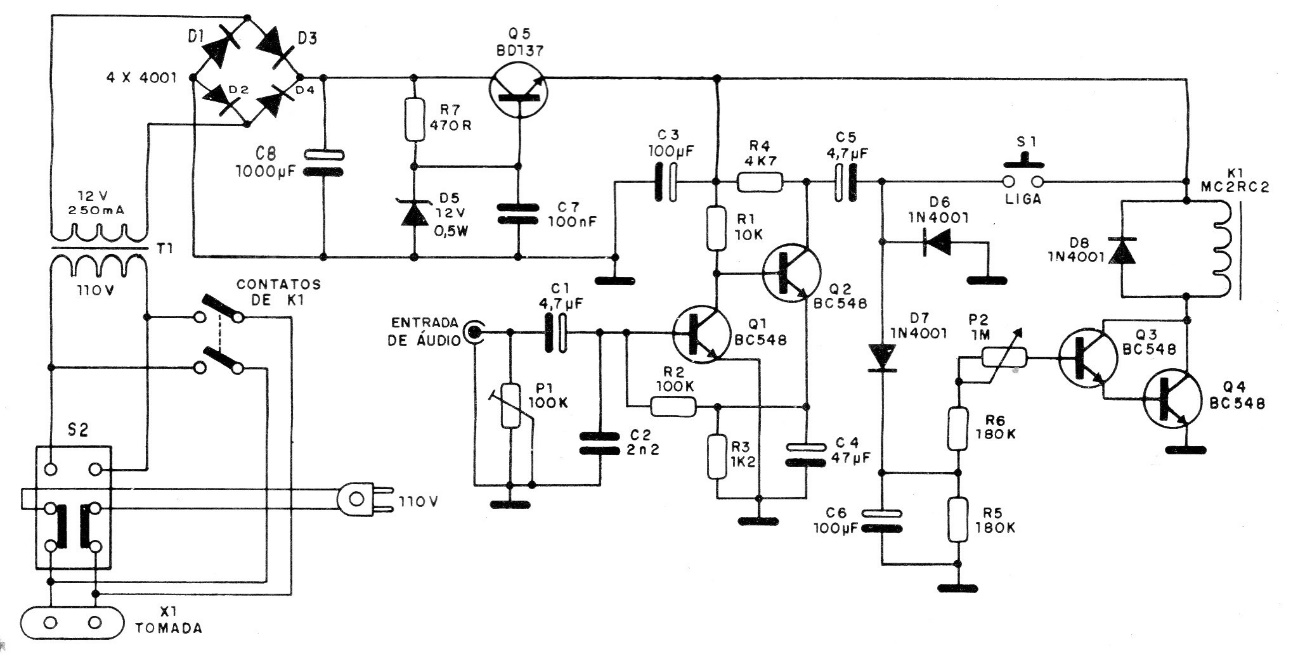

This circuit, found in a 1988 documentation consisting of an audio switch that turns off the load (TV or sound) when there is no more sound, that is, at the end of the program, thus preventing the device from being turned on. This is important if the user usually sleeps with the devices on. The relay is 12V and the control signal is taken from the equipment that must be protected.
| Clique na imagem para ampliar |
