Sweep Sequential (CB16464E)

Details
Written by: Newton C. Braga

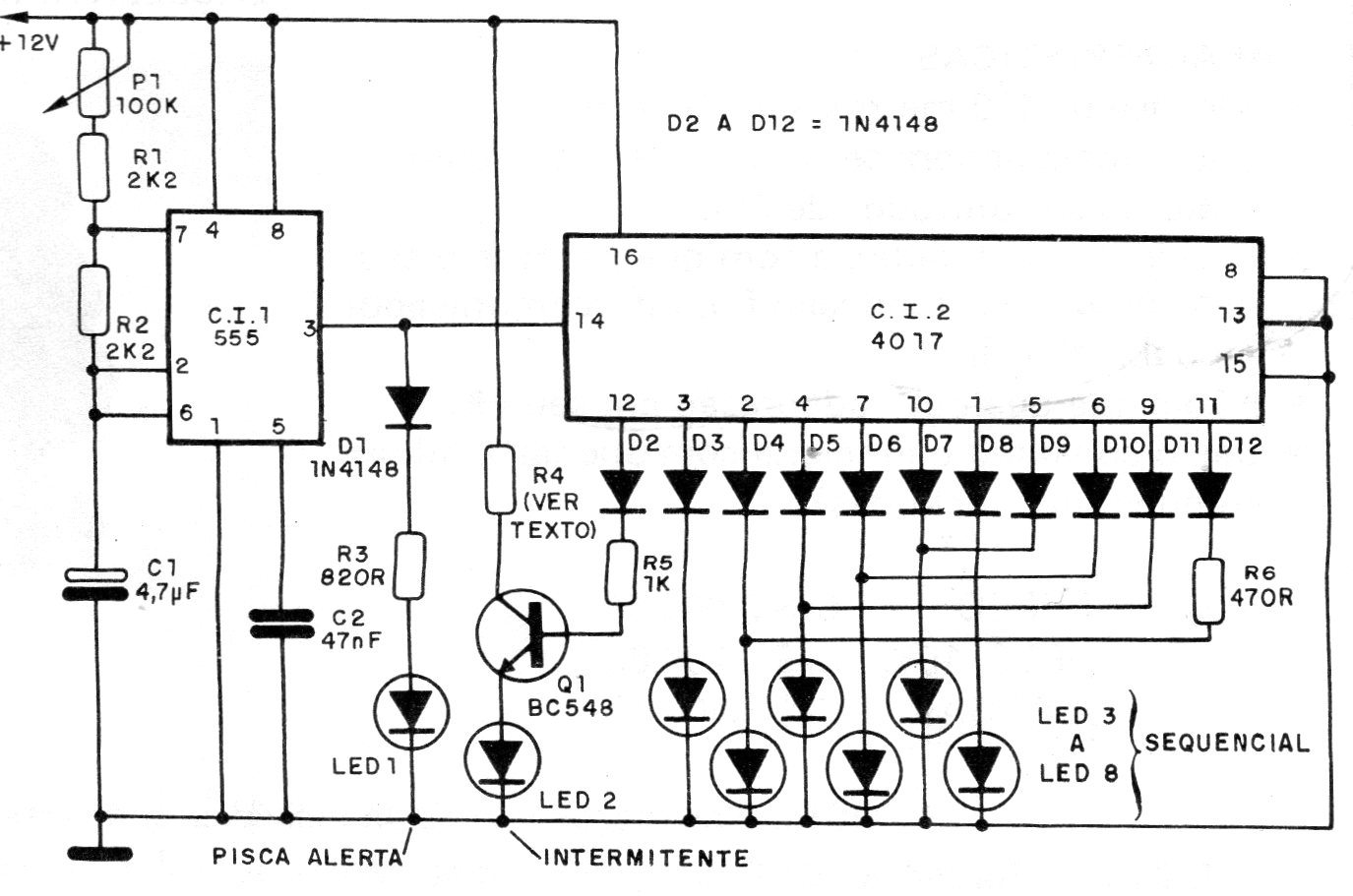

This 1988 circuit makes a back-and-forth of LEDs whose speed is controlled by P1. All components used are common and the circuit can be powered by voltages from 6 to 9 V.




| Clique na imagem para ampliar |
