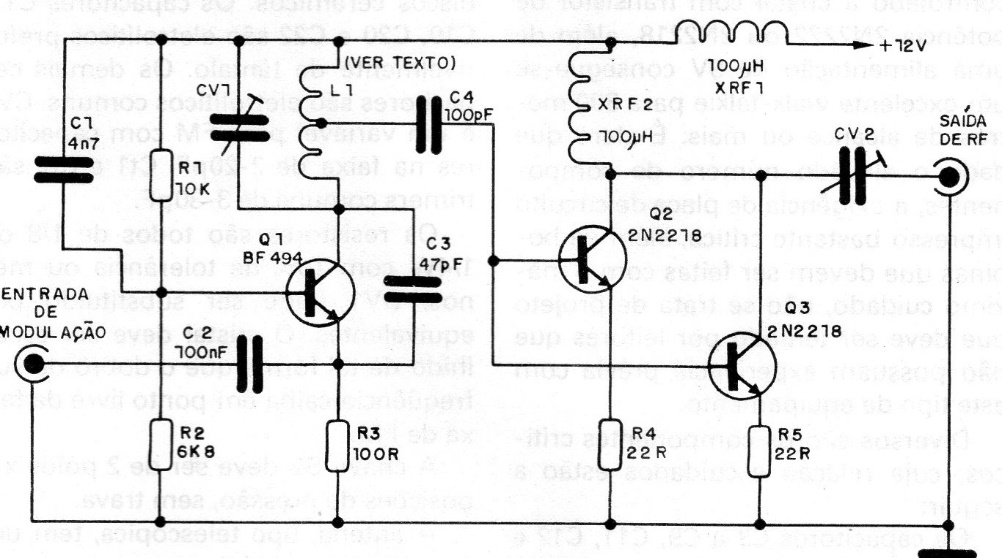

This small transmitter was found in a 1988 publication, but it can be easily assembled today. The coil is formed by 15 turns of wire 22 in the form of 8 mm without core with central socket. The circuit must be powered by a well-filtered 12 V source.
