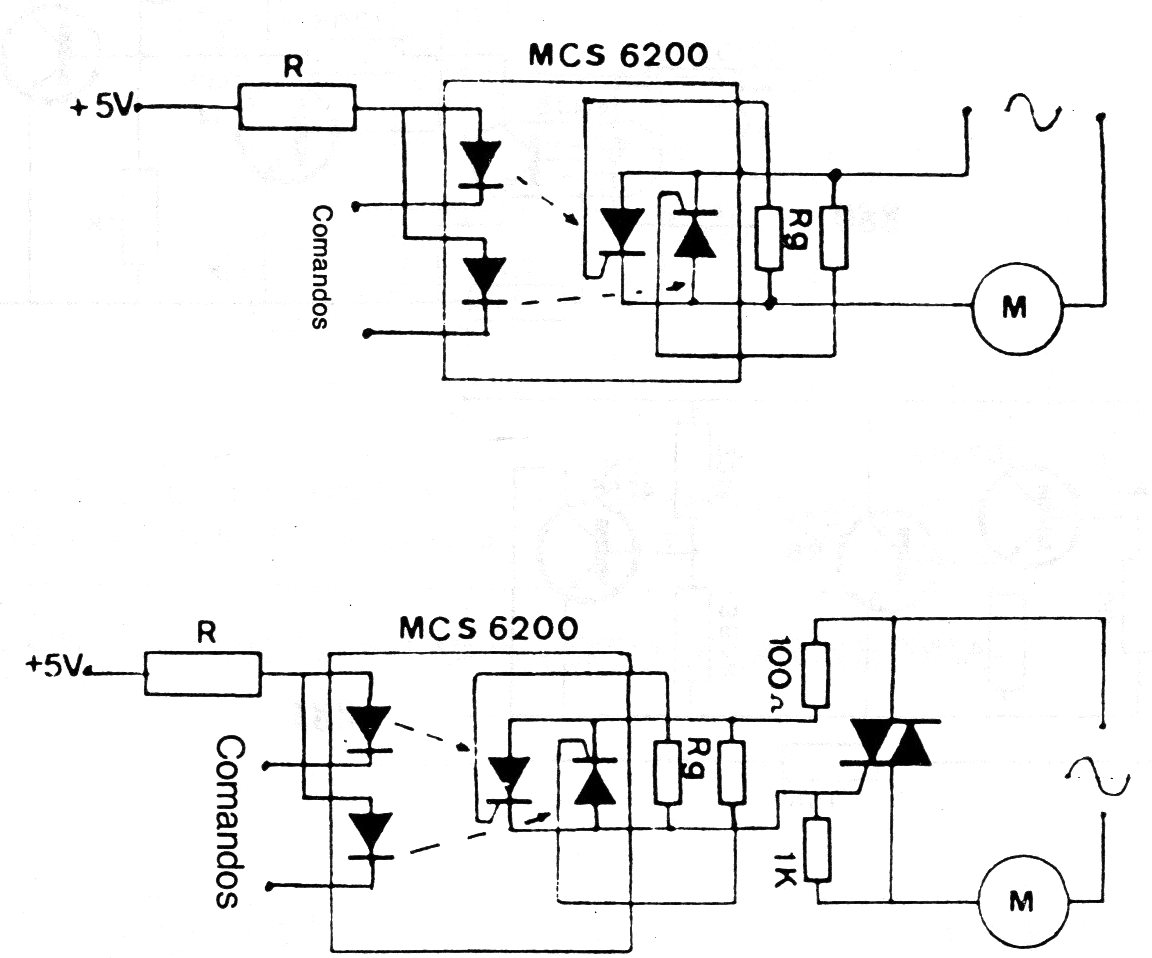

This shield can be controlled by positive or negative voltages of the sensor acting as a bidirectional motor control. The coupler with two emitting diodes and two photo-SCRs is not common today, but the configuration can be simulated with two separate opto-couplers. The circuit is from a documentation from the 70s.
