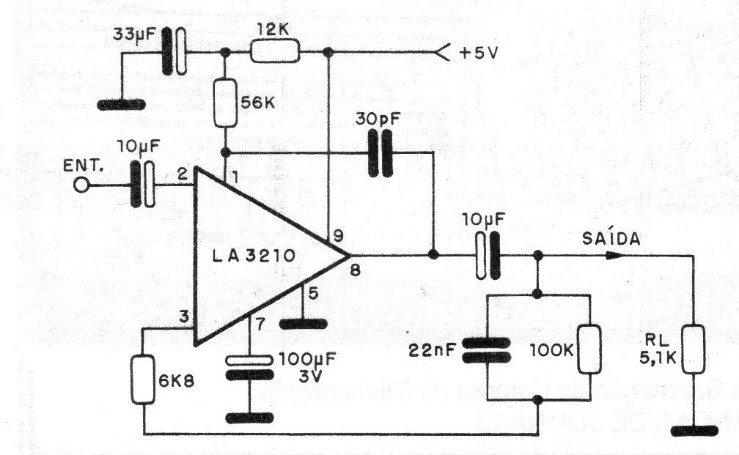

This equalizer has automatic level control, being designed by Sanyo for cassette recorders and radio. The maximum supply voltage of the LA3210 is 15 V and the typical idle current of 1.4mA.
| Clique na imagem para ampliar |
Equalizer LA2210 (CB16046E)
- Details
- Written by: Newton C. Braga
