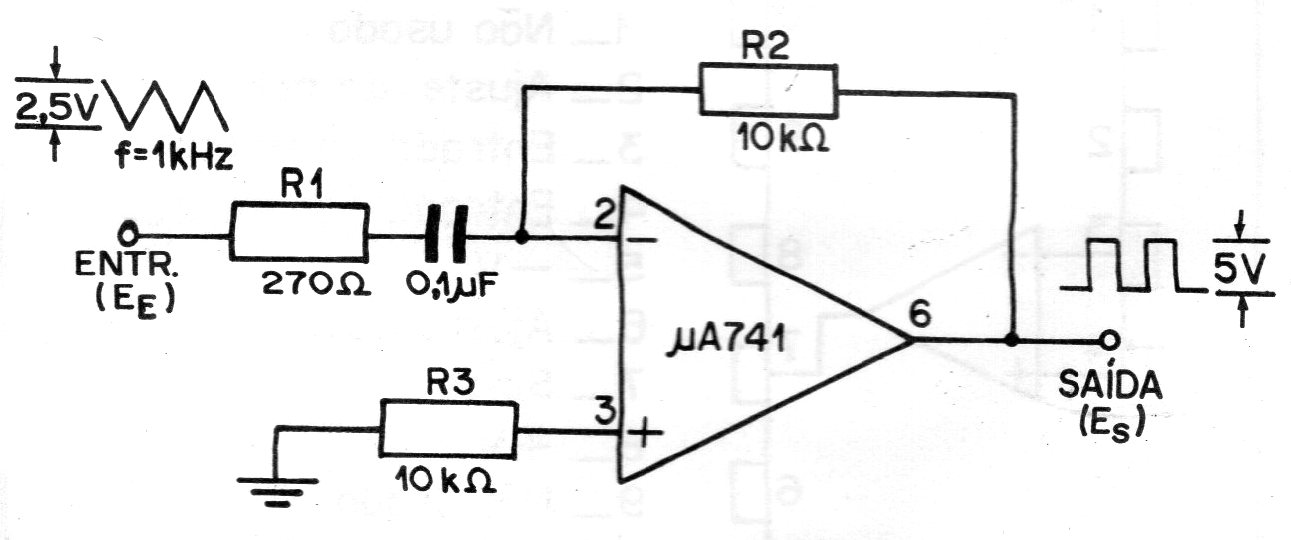

This is one of the many differentiating and operational circuits that the reader can find on the website. The power supply must be symmetrical, and the values of the components (C1) are given for a frequency of 1 kHz.
| Clique na imagem para ampliar |
