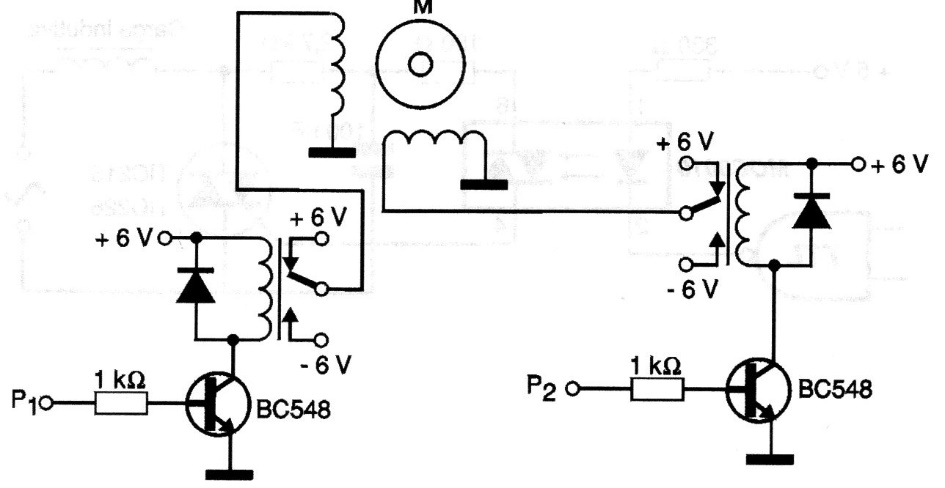

Using 5 V relays, this circuit can be used as a control shield for microcontrollers. The circuit uses relays, and the motor voltage is independent of the control voltage.
| Clique na imagem para ampliar |
Two-Phase Stepper Motor Control (CB17559E)
- Details
- Written by: Newton C. Braga
