Battery Splitter (CB17601E)

Details
Written by: Newton C. Braga

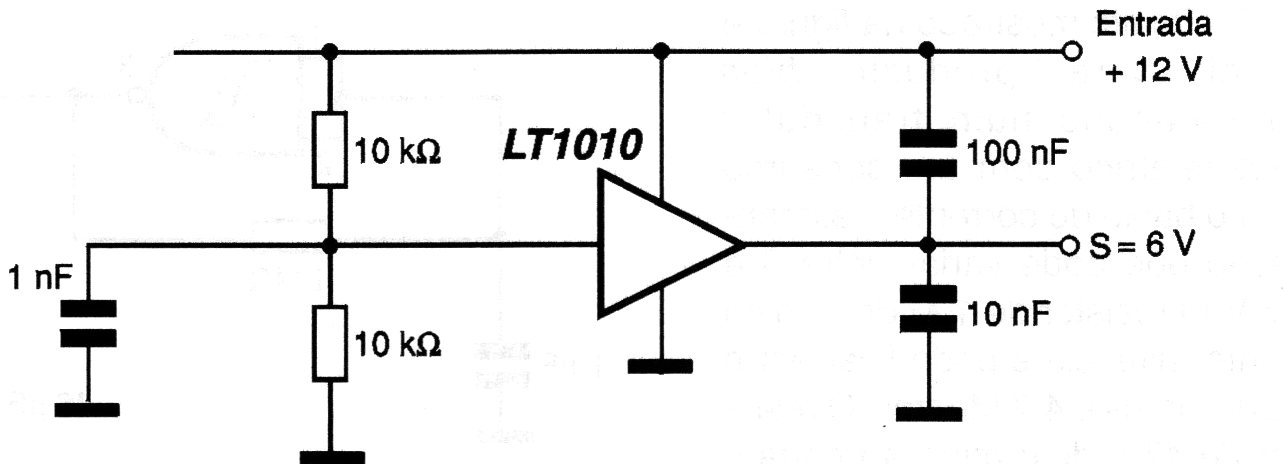

This circuit divides the voltage of a 12 V battery by 2 and can supply currents up to 1 A at the lowest voltage output. The integrated circuit used is not very common today.
