1 MHz TTL Oscillator (CB17600E)

Details
Written by: Newton C. Braga

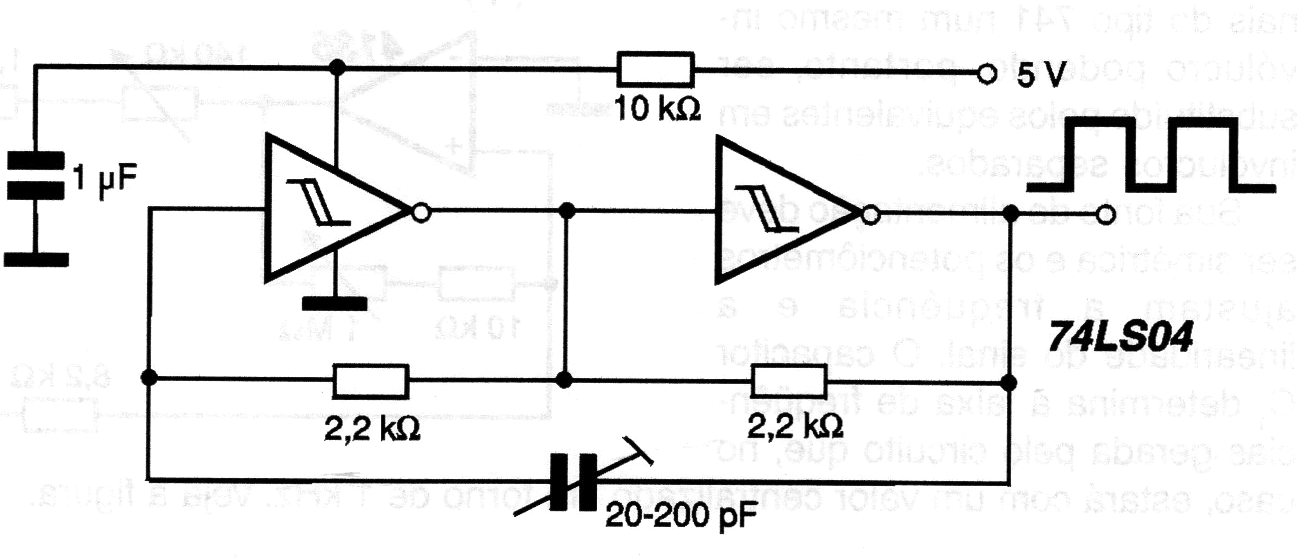

This oscillator provides a 1 MHz rectangular signal determined by the capacitors used. The circuit must be powered by a voltage of 5 V. The maximum frequency depends on the logic used.
