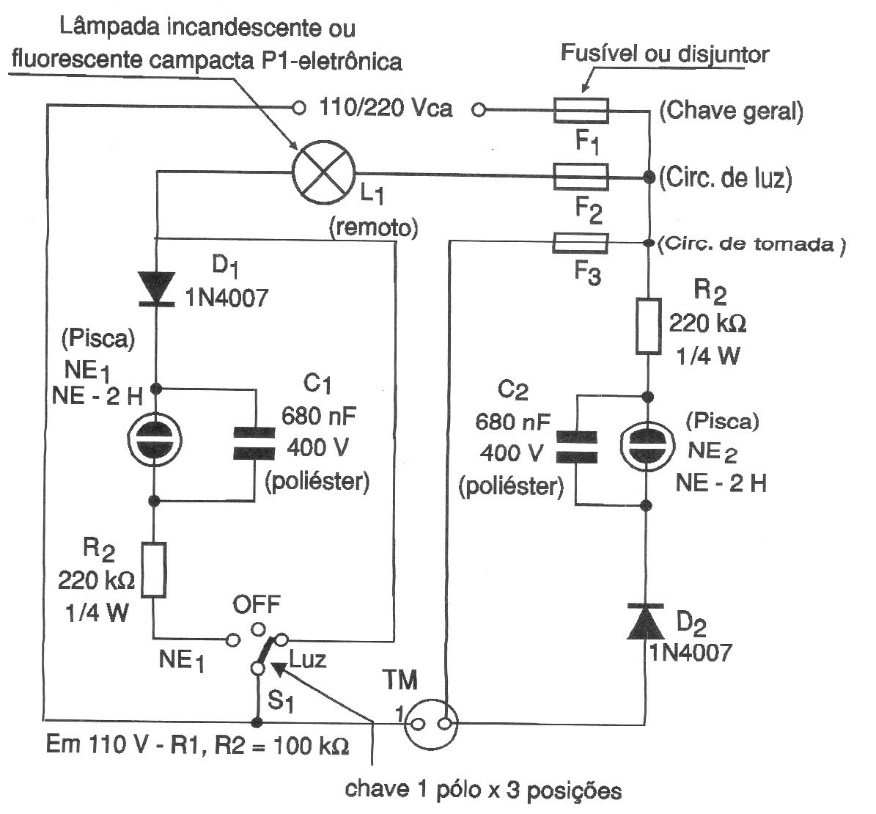

Fuse and Light Monitor (CB17402E)

This electrical circuit monitors fuses and lamps and can be installed in the mirror itself. The circuit is from 2002 documentation.

| Clique na imagem para ampliar |
