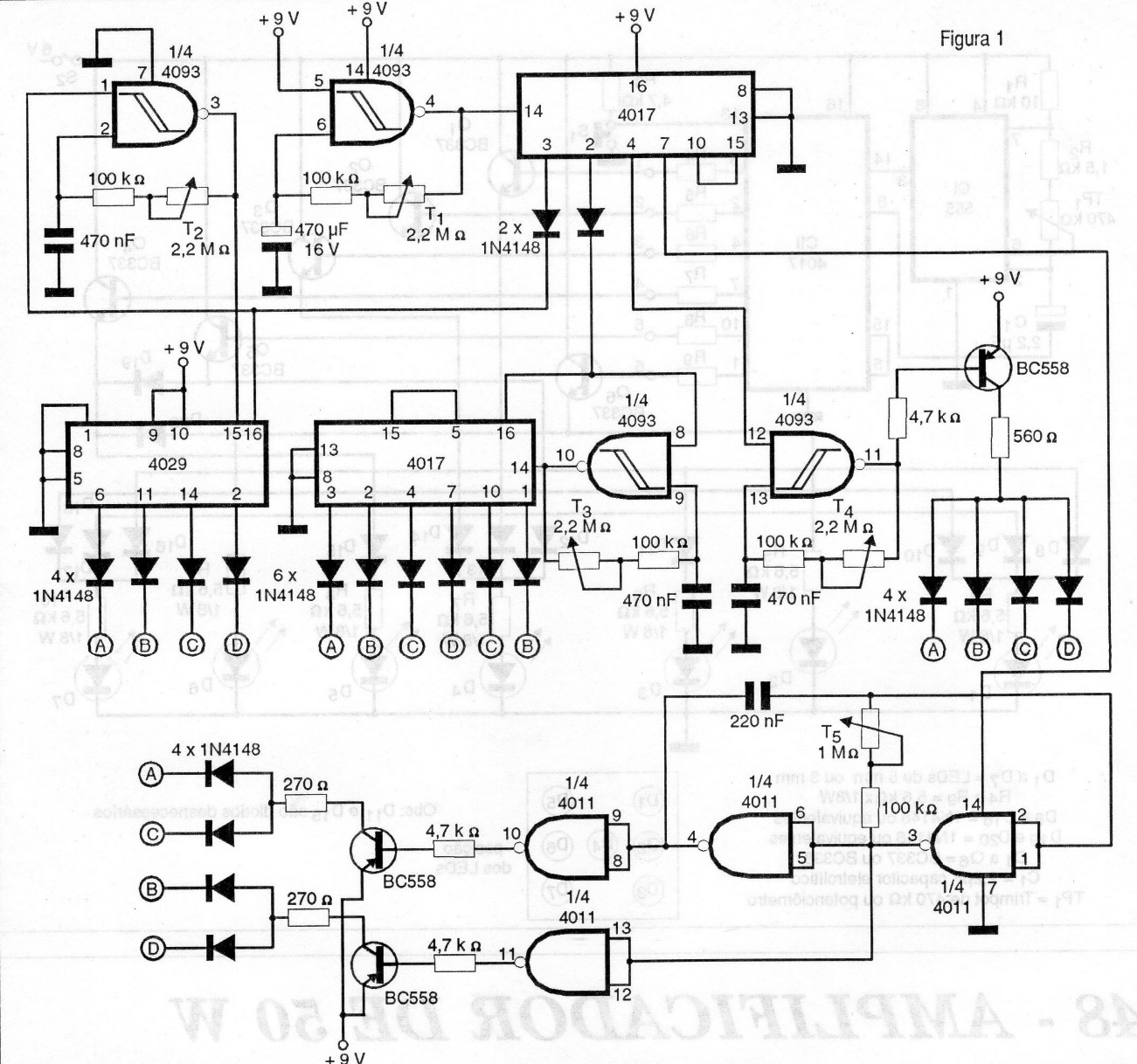

We found this circuit in a 1997 documentation. It can drive sets of LEDs or lamps through SCRs in conventional configurations. The circuit has several adjustments that allow you to modify the effects as desired. The circuit must be powered by 6 to 12 V power sources.
| Clique na imagem para ampliar |
