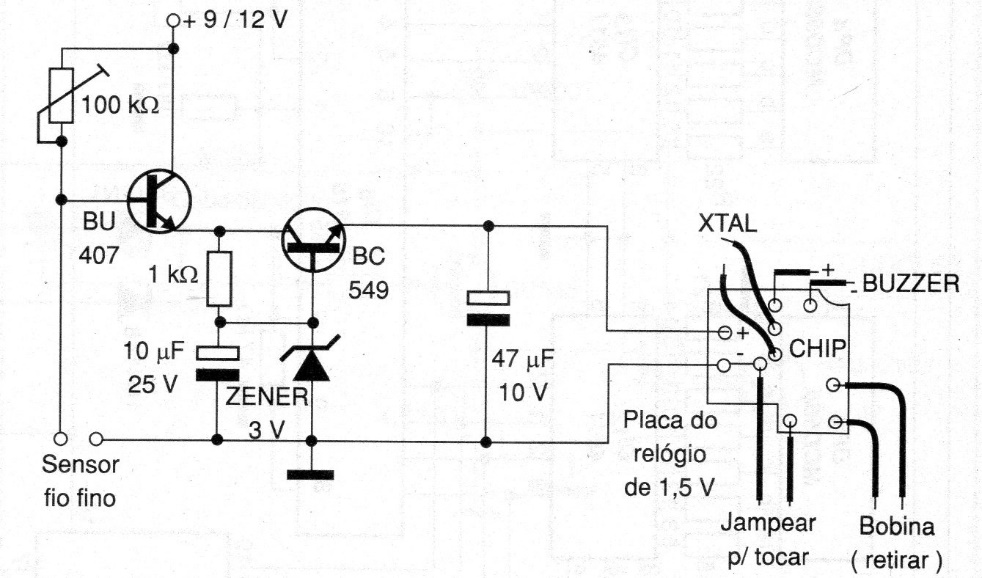

In the figure we have the way to use a low-cost digital clock chip to trigger an alarm. The circuit is from 2003 documentation. The power must be supplied with voltages from 9 to 12 V. The power transistor does not need to be equipped with a heat sink.
