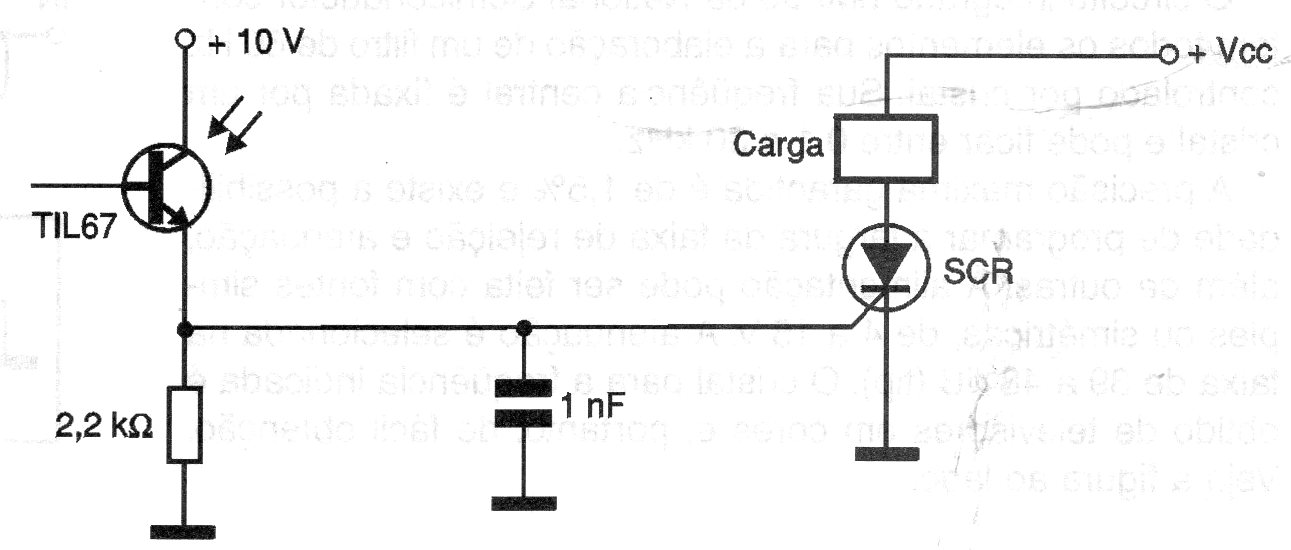

In this 2001 circuit we have the way to trigger an SCR with a phototransistor. The circuit appears elsewhere in this section, obtained from publications from different eras.
| Clique na imagem para ampliar |
SCR triggering by Phototransistor (CB17610E)
