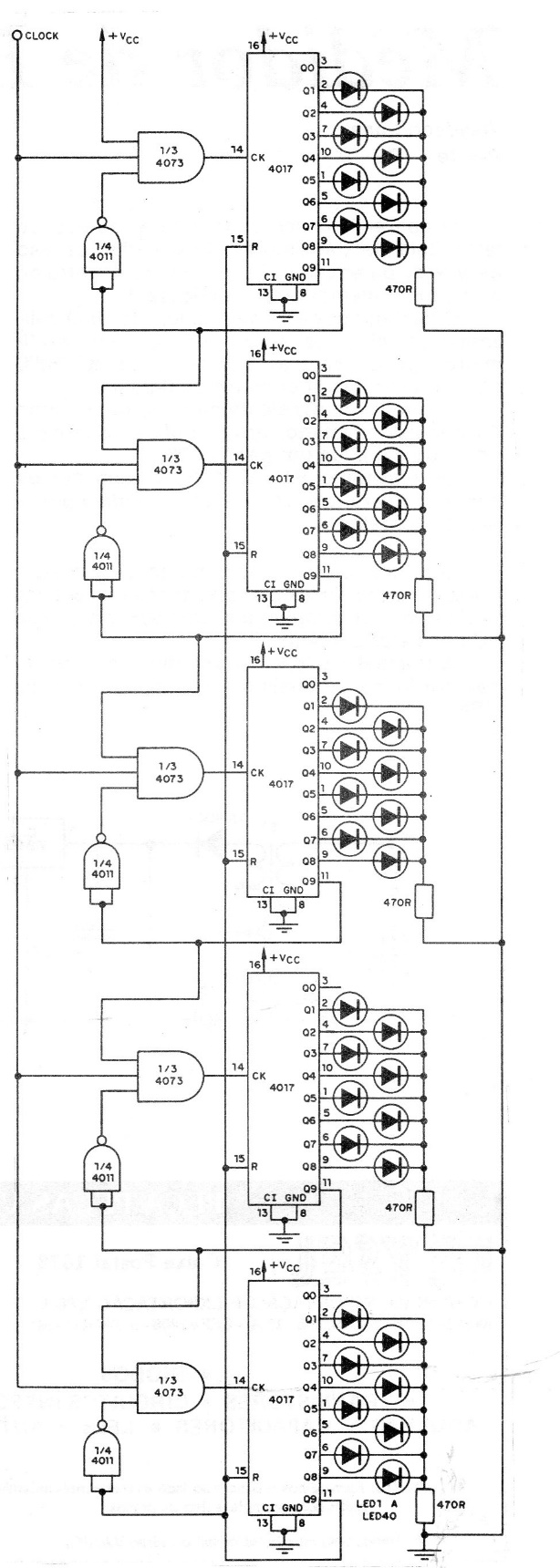

We found this circuit in a 1986 documentation. It causes 40 LEDs to flash sequentially. The big problem with the effect is that in each instant only one LED runs through the entire sequence. The circuit can be powered by voltages from 5 to 12 V.
40-Channel Sequential (CB17484E)
- Details
- Written by: Newton C. Braga
