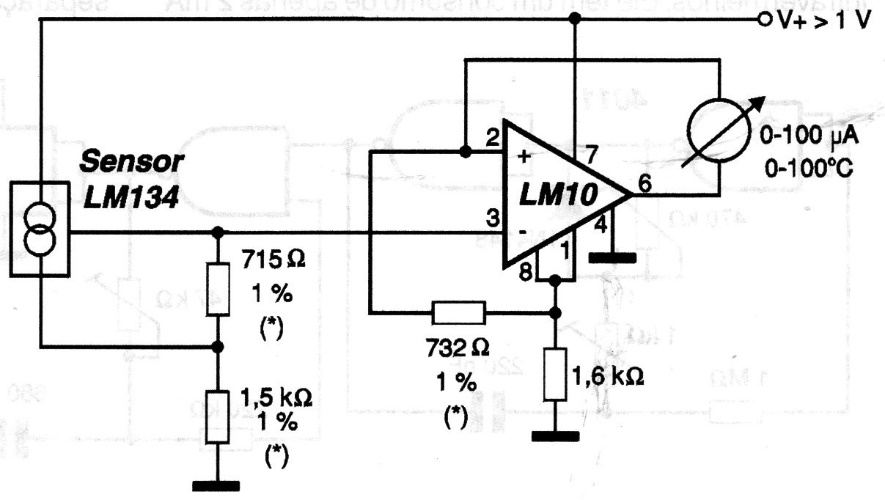

The integrated circuits used in this thermometer are not very common today. The indicator is a microammeter for a scale from 0 to 100o C. The supply must be made with a voltage of 1 to 12 V.
| Clique na imagem para ampliar |
Thermometer LM10 and LM134 (CB17591E)
