Resistor Test (CB17501E)

Details
Written by: Newton C. Braga

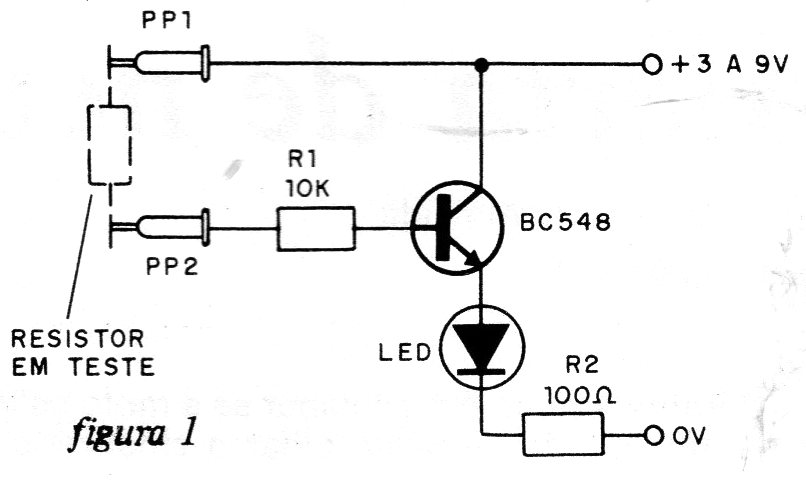

This simple circuit is a continuity test that, in addition to testing resistors, can also test other components. Power is provided by batteries and the LED can be of any color.




| Clique na imagem para ampliar |
