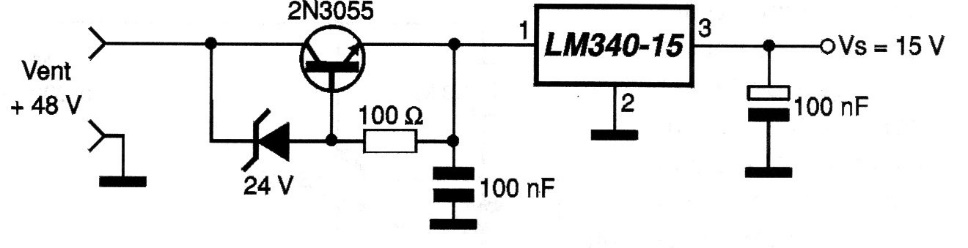

The purpose of this circuit is to obtain a voltage of 15 V with 1.5 A from a 48 V input. The integrated circuit and the transistor must be equipped with good heat sinks. The zener makes the first reduction according to the maximum input of the regulating IC.
