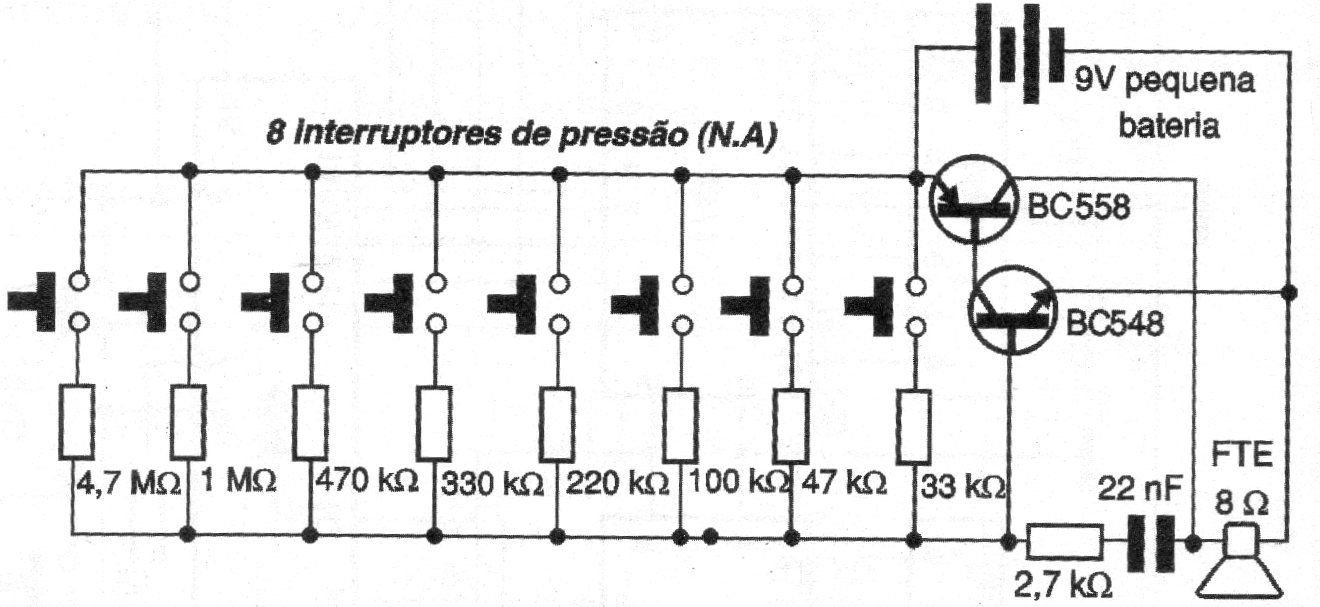

The oscillator shown produces 8 different sounds, depending on which switch is pressed. There are several possible applications, such as a bell that allows you to identify by the tone from which the call comes. It can also be used in a sound effect toy for children. By connecting the drive outputs to a sequential with the 4017 integrated circuit, we can have a sound effects system.
