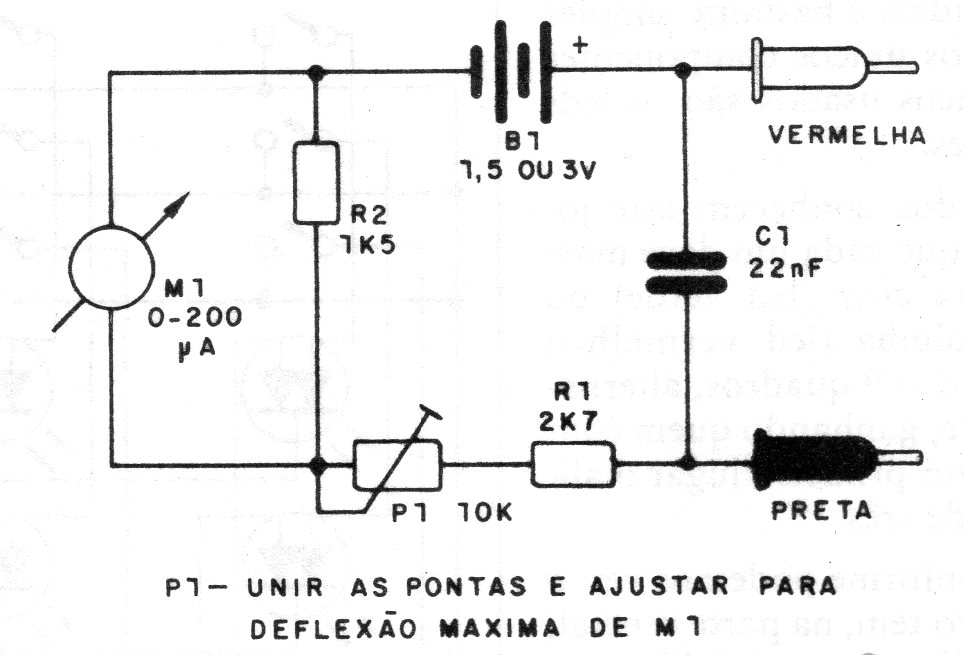

This is a very simple continuity tester, powered by one or two batteries of any size. The adjustment of the full scale for the instrument used is made in P1. The original instrument is a common 0 to 200 uA microammeter.
| Clique na imagem para ampliar |
