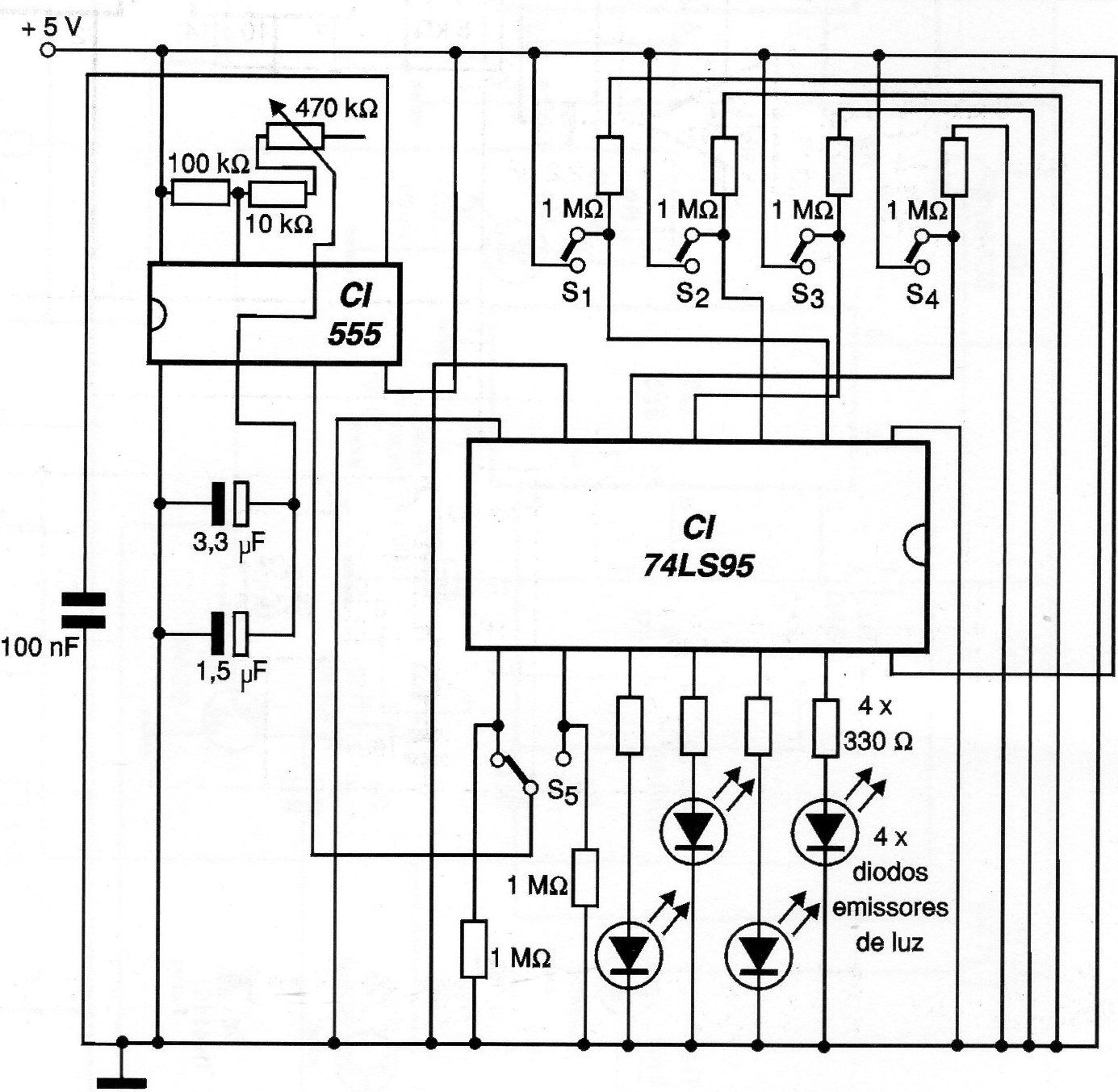

The lighting sequence of the LEDs on this circuit, found in a 2001 documentation, is determined by the programming of the switches. The speed of the effect is adjusted in the potentiometer and the supply must be made with 5 V since it is a TTL circuit. Power steps at the outputs allow driving higher power loads.
