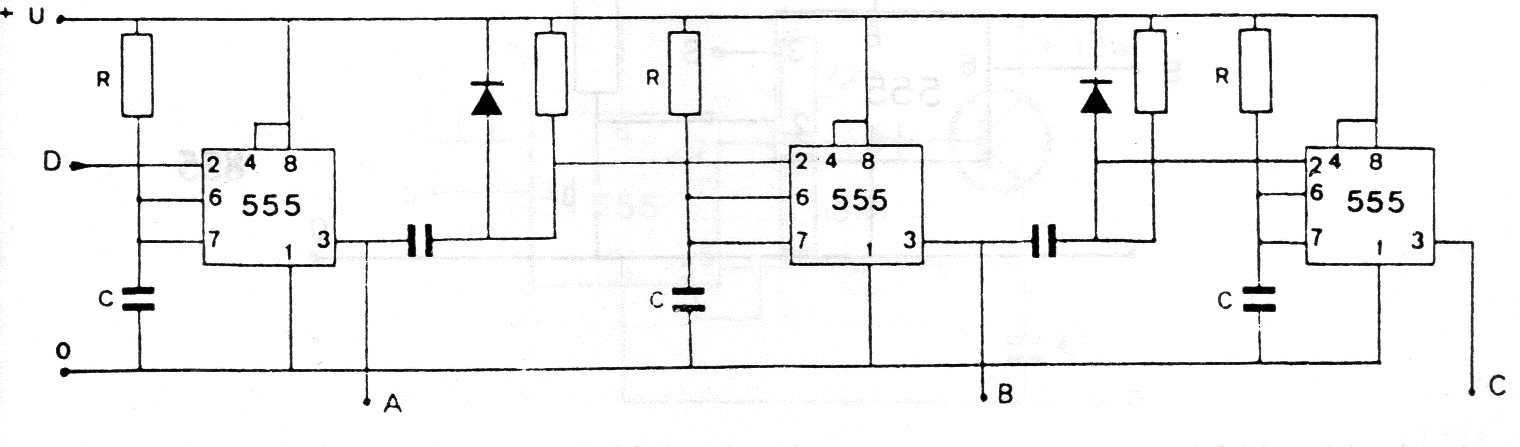

In the figure we have the way to connect several 555 to obtain sequential operation. The component values depend on the application, with capacitors typically between 100 and 470 nF and resistors between 10k and 100k. The supply must be made with voltages from 5 to 15 V.
