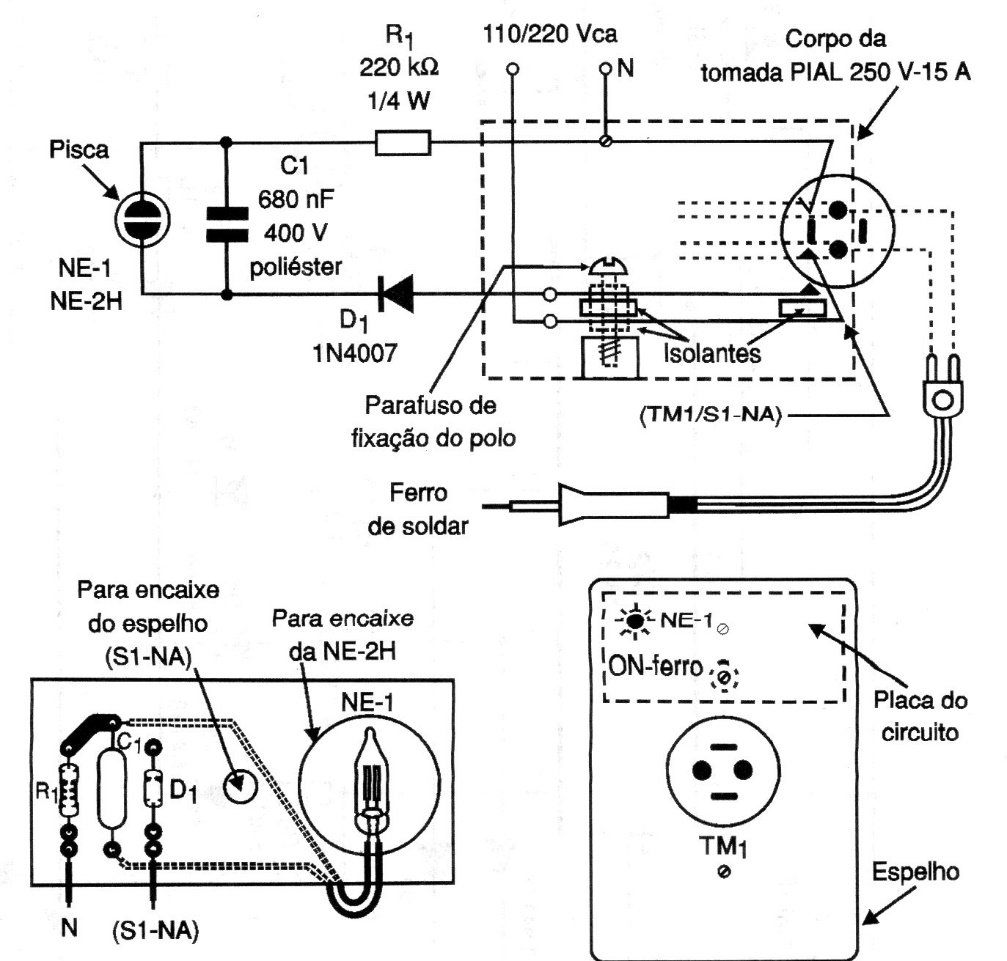

This circuit is from 2001 documentation but can be adapted to the outlets with the current standard. The circuit indicates when a welder connected to the outlet is turned on, receiving power, and therefore being heated.
| Clique na imagem para ampliar |
