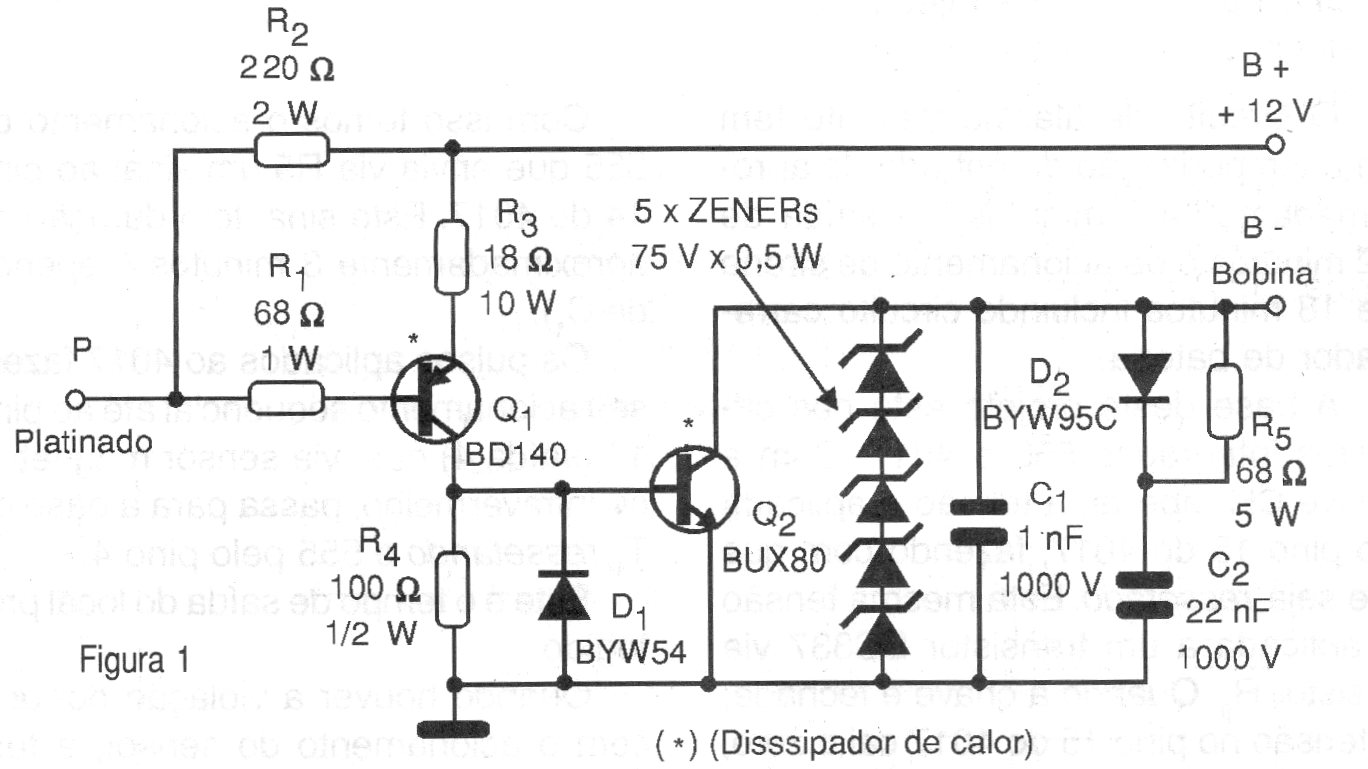

This circuit dates to 1999, when most vehicles did not yet have electronic ignition and used platinum. The circuit consists of an assisted ignition in which the platinum controls an electronic circuit to produce high voltage. The power transistor must be mounted on an excellent heat sink.
| Clique na imagem para ampliar |
