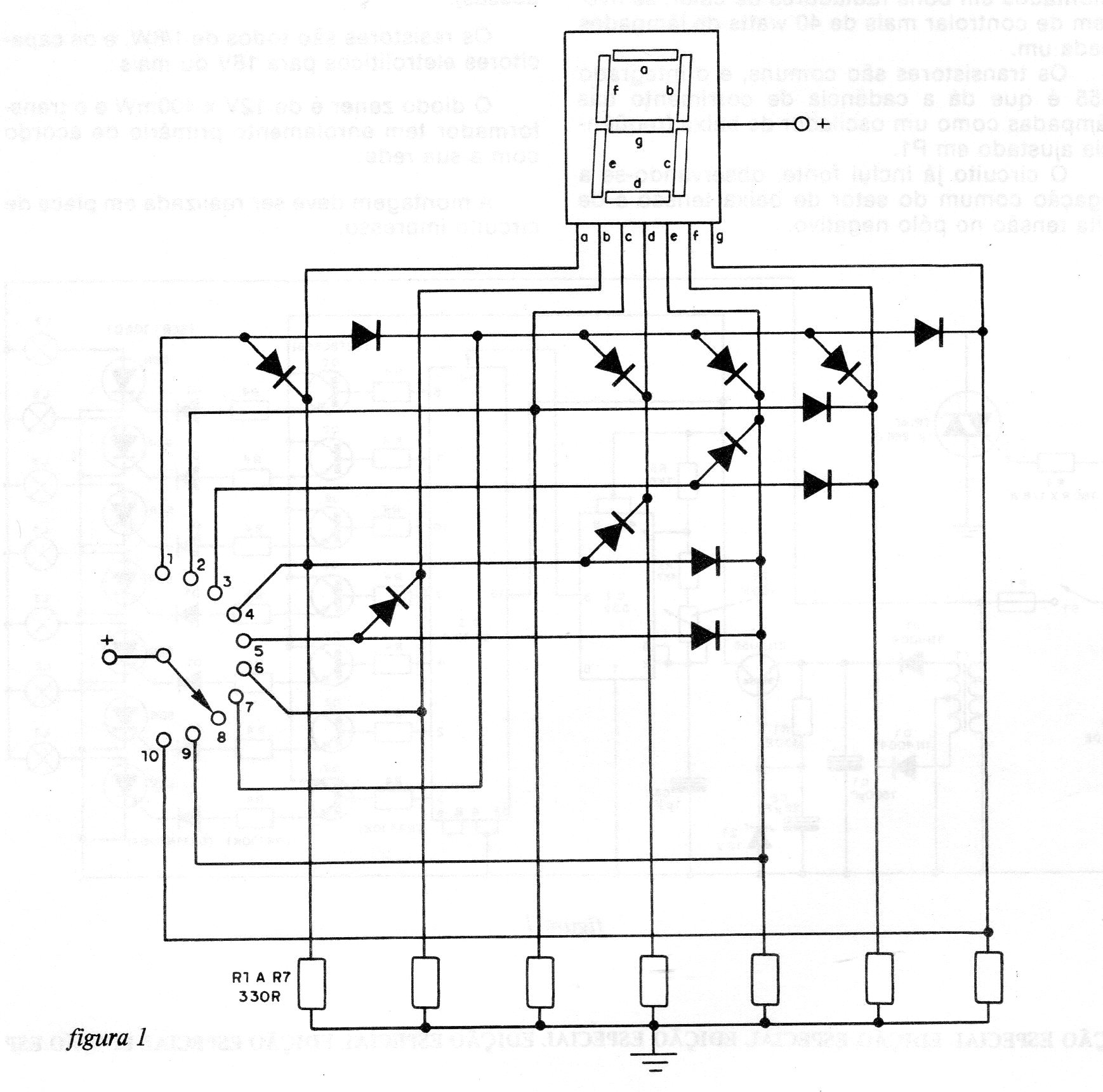

This didactic circuit makes the sequential activation from 0 to 10 to demonstrate the functioning of a 7-segment display. The supply is 5 or 6 and the diodes can be 1N4148 or any general-purpose type.
| Clique na imagem para ampliar |
7 Segment Experimental Display (CB17499E)
- Details
- Written by: Newton C. Braga
